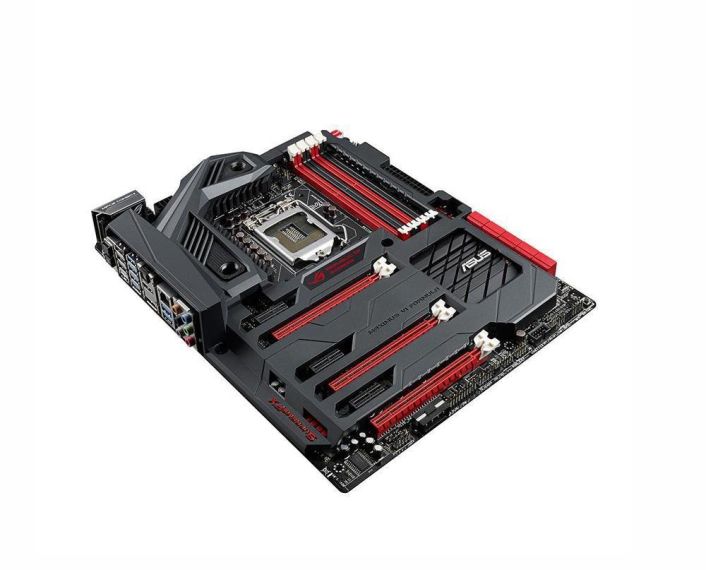

90MB0DY0-M0EAY0 ASUS Maximus VI Formula Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$274.16
- Part No. : 90MB0DY0-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0DY0-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z87
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-19200 (DDR3-2400)PC3-21300 (DDR3-2666)
- Maximum Installed Memory : 32 GB
- Expansion Slots : Mini PCIPCI-E 2.0 x1PCI-E 2.0 x16
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorDisplayPortHDMIPS/2 KeyboardPS/2 MouseRJ-45USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)4 x USB 2.01 x Optical S/PDIF out6 x Audio jack(s)1 x Clear CMOS button(s)1 x ROG Connect On/ Off switch(es)Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x TPM connector(s)10 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)3 x Optional Fan connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x DirectKey Button(s)1 x DRCT header(s)1 x MemOK! button(s)10 x ProbeIt Measurement Points3 x Thermal sensor connector(s)1 x Power-on button(s)1 x Reset button(s)1 x mPCIe Combo II connector(s)1 x FastBoot switch(es)1 x ROG extension (ROG_EXT) header(s)
| brand | Asus |
|---|---|
| Condition | Used |
