btd-047017
In stock

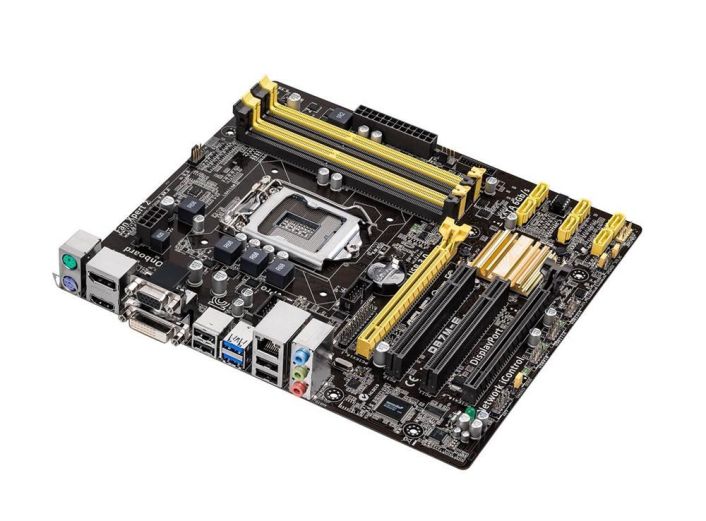

90MB0FS0-M0EAY5 ASUS Socket LGA 1150 Intel Q87 Chipset Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
$361.93
- Part No. : 90MB0FS0-M0EAY5
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0FS0-M0EAY5
- Product Type : System Board
- Form Factor : Micro ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 Processor
- Supported CPU Technologies : Hyper-Threading TechnologyIntel Turbo Boost Technology
- Chipset : Intel Q87
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-8500 (DDR3-1066)
- Maximum Installed Memory : 32GB
- Expansion Slots : PCIPCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 1 x PCIe 3.0/2.0 x16 (yellow)1 x PCIe 2.0 x16 (x4 mode, dark brown)2 x PCI
- Storage Controller : SATA 6.0 Gbps
- Storage Controller Details : Intel Q87 chipset6 x SATA 6Gb/s port(s), yellowSupport Raid 0, 1, 5, 10
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorChassis Fan ConnectorCOMCPU Fan ConnectorHDMIPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Connector1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)1 x LPT1 header2 x COM port(s) connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s)2 x Chassis Fan connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s)1 x Chassis Intrusion connector(s)1 x Clear CMOS jumper(s)Back I/O Connectors1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 14 x USB 2.03 x Audio jack(s)
| brand | Asus |
|---|---|
| Condition | Used |
