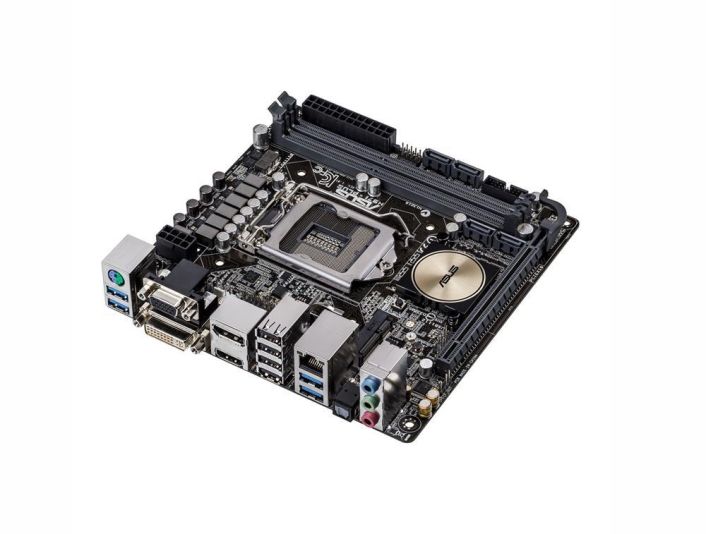

90MB0I90-M0EAY0 ASUS H97I-PLUS Socket LGA 1150 Intel H97 Chipset 5th/New 4th/4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s Mini ITX Motherboard (Refurbished)
$160.91
- Part No. : 90MB0I90-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0I90-M0EAY0
- Product Type : System Board
- Form Factor : Mini-ITX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel H97
- Number of Memory Slot(s) : 2
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)
- Maximum Installed Memory : 16 GB
- Expansion Slots : Mini PCIPCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 1 x PCIe 3.0/2.0 x16 (x16 mode)1 x mini-PCIe
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorDVIPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DVI1 x D-Sub1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue)4 x USB 2.01 x Optical S/PDIF out3 x Audio jack(s)Internal I/O Ports1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 3 for M Key, type 2260/2280 devices1 x TPM header4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s)1 x MemOK! button(s)1 x Clear CMOS jumper(s)
| brand | Asus |
|---|---|
| Condition | Used |
