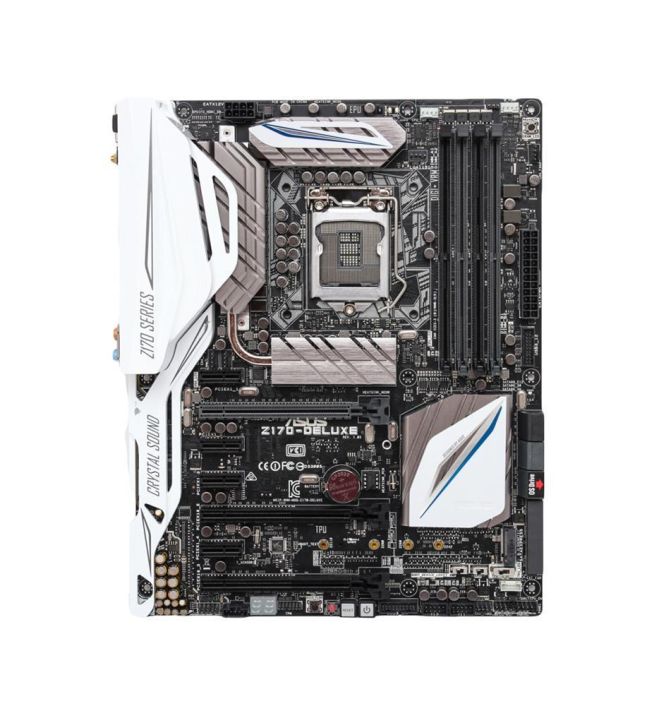

90MB0LR0-M0EAY0 ASUS Z170-DELUXE Socket LGA 1151 Intel Z170 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$264.03
- Part No. : 90MB0LR0-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0LR0-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z170
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-14900 (DDR4-1866)PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16PCI-E x1
- Expansion Slots Details : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 3.0/2.0 x16 (max at x4 mode) *14 x PCIe x1
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Chassis Fan ConnectorCPU Fan ConnectorHDMIPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x DisplayPort1 x HDMI2 x LAN (RJ45) port(s)5 x USB 3.1 Gen 2 (teal blue)Type-A,1 x USB 3.1 Gen 2 USB Type-CTM1 x USB 3.1 Gen 1 (blue)1 x USB 2.0 (one port can be switched to USB BIOS Flashback®)1 x Optical S/PDIF out1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)1 x 8-channel Audio I/OInternal I/O Ports1 x AAFP connector2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x SATA Express connector1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)1 x TPM header6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (4 -pin)1 x CPU OPT Fan connector(s) (4 -pin)4 x Chassis Fan connector(s) (4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x System panel(s) (Q-Connector)1 x 5-pin EXT_FAN(Extension Fan) connector1 x DRCT header(s)1 x MemOK! button(s)1 x Thermal sensor connector(s)1 x TPU switch(es)1 x EPU switch(es)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x USB BIOS Flashback® button(s)1 x Water Pump header (4-pin)1 x 14-1 pin TPM connector
| brand | Asus |
|---|---|
| Condition | Used |
