btd-046142
In stock

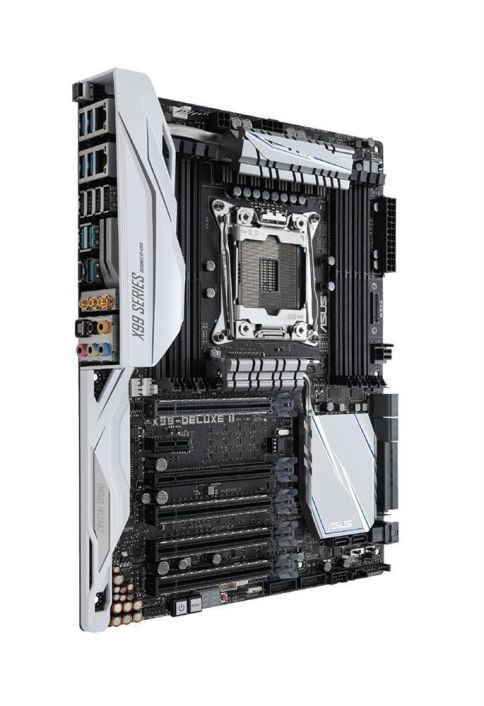

90MB0QB0-M0EAY1 ASUS X99-DELUXE II Socket 2011-v3 Intel X99 Chipset Core i7 Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$518.36
- Part No. : 90MB0QB0-M0EAY1
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0QB0-M0EAY1
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 2011-3
- Supported CPU(s) : Intel Core i7 Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel X99
- Number of Memory Slot(s) : 8
- Number of Memory Channel(s) : 4
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 128 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 40-Lane CPU4 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x8/x8) *11 x PCIe 2.0 x16 (x1 mode)1 x PCIe 2.0 x16 (max at x4 mode) *31 x PCIe 2.0 x128-Lane CPUM3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8) *21 x PCIe 2.0 x161 x PCIe 2.0 x16 (max at x4 mode) *31 x PCIe 2.0 x1
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports2 x LAN (RJ45) port(s)3 x USB 3.1 Gen 2 Type-A1 x USB 3.1 Gen 2 USB Type-CTM4 x USB 3.1 Gen 1 (blue)4 x USB 2.0 (one port can be switched to USB BIOS Flashback®)1 x Optical S/PDIF out5 x Audio jack(s)1 x USB BIOS Flashback® Button(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0/3.0+HS)Internal I/O Ports1 x AAFP connector1 x Aura RGB Strip Header2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x SATA Express connector1 x M.2 Socket 3 with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)1 x TPM connector(s)8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x SLI/CFX switch (2/3-WAY adjustments)1 x System panel(s) (Q-Connector)1 x DRCT header(s)1 x MemOK! button(s)1 x Thermal sensor connector(s)1 x CPU/DRAM overvoltage jumper(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x 5-pin EXT_FAN(Extension Fan) connector1 x Water Pump header (4-pin)1 x High AMP Fan header (4-pin)
| brand | Asus |
|---|---|
| Condition | Used |
