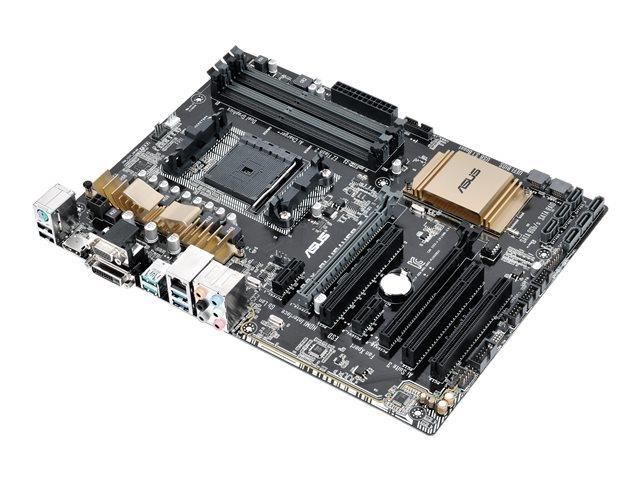

90MB0QX0-M0EAY0 ASUS Socket FM2+ AMD A888X Chipset Athlon/ A-Series Processors Support DDR3 4x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$118.64
- Part No. : 90MB0QX0-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0QX0-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : Socket FM2+
- Supported CPU(s) : AMD A-Series ProcessorAMD Athlon Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : AMD A88X
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-19200 (DDR3-2400)PC3-8500 (DDR3-1066)
- Maximum Installed Memory : 64GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 1 x PCIe 3.0/2.0 x16 (x16 mode) *31 x PCIe 2.0 x16 (max at x4 mode) *42 x PCIe x13 x PCI
- Storage Controller : SATA 6.0 Gbps
- Storage Controller Details : 8 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 5, 10, JBOD
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : Chassis Fan ConnectorCOMCPU Fan ConnectorD-SubHDMIPS/2PS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Ports1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DVI1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (teal blue)2 x USB 3.1 Gen 1 (blue)2 x USB 2.06 x Audio jack(s)
- Features : ASUS 5X Protection IIASUS LANGuard - 2.5X higher surge toleranceASUS DIGI+ VRM - 6 Phase digital power designASUS DRAM Overcurrent Protection - Prevents damage from short circuitsASUS Exclusive FeaturesTurboV EVOAI Suite 3Ai Charger+Anti-SurgeASUS Quiet Thermal SolutionStylish Fanless Design Heat-sink solution & MOS HeatsinkASUS Fan XpertASUS EZ DIYASUS CrashFree BIOS 3ASUS EZ Flash 2ASUS MyLogo 2
| brand | Asus |
|---|---|
| Condition | Used |
