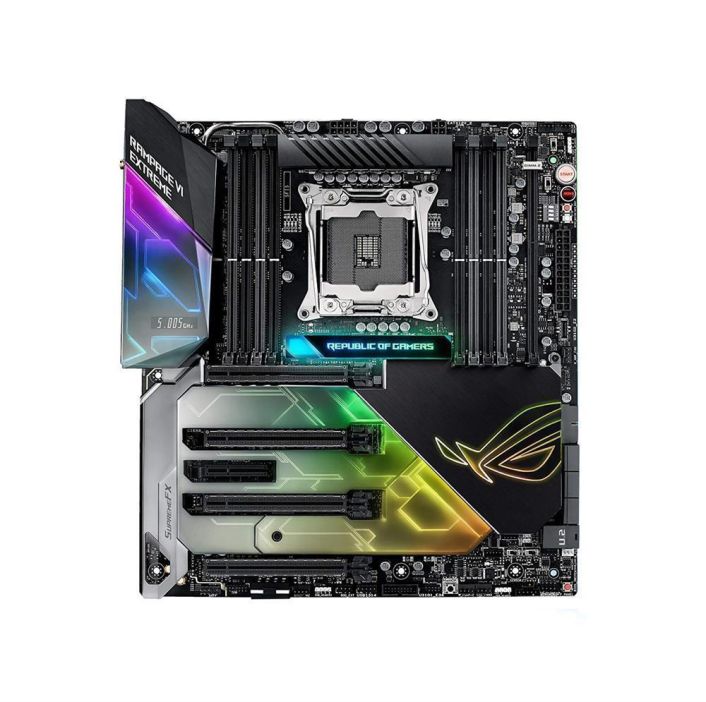

90MB0U30-M0EAY0 ASUS ROG RAMPAGE VI EXTREME Socket 2066 Intel X299 Chipset Core X-Series 79xx/ 78xx Series Processors Support DDR4 8x DIMM 6x SATA Extended-ATX Motherboard (Refurbished)
$731.98
- Part No. : 90MB0U30-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0U30-M0EAY0
- Product Type : System Board
- Form Factor : E-ATX
- CPU Socket Type : LGA 2066
- Supported CPU(s) : Intel Core X-Series Processor
- Number of Memory Slot(s) : 8
- Supported Memory Standard(s) : PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 128 GB
- Expansion Slots : PCI-E 3.0 x16PCI-E 3.0 x4
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45SerialTPM HeaderUSB 3.1
- Connectors/Ports Details : Back I/O Ports1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 28 x USB 3.1 Gen 1 ,1 x Optical S/PDIF out1 x Clear CMOS button(s)1 x USB BIOS Flashback® Button(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac+ WiGig 802.11ad and Bluetooth v4.1)5 x LED-illuminated audio jacks1 x Aquantia AQC-107 10G LAN portInternal I/O Ports1 x W_PUMP+ 11 x W_PUMP+ 21 x WB_SENSOR1 x Aura Addressable Strip Header(s)1 x U.2 port1 x Aura RGB Strip Headers2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)1 x TPM connector(s)6 x SATA 6Gb/s connector(s)1 x VROC_HW_Key1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x H_AMP fan connector1 x Thunderbolt header(s)1 x 8-pin EATX 12 V Power connector1 x 4-pin EATX 12 V_1 Power connector(s)1 x 24-pin EATX Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x 5-pin EXT_FAN(Extension Fan) connector1 x Slow Mode switch(es)1 x ProbeIt Measurement Points1 x BIOS Switch button(s)1 x LN2 Mode jumper(s)1 x ROG extension (ROG_EXT) header(s)1 x Safe Boot button1 x ReTry button1 x System panel connector1 x PCIe x16 lane switch2 x T_Sensor Connector1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Start button1 x USB 3.1 Gen 2 front panel connector
| brand | Asus |
|---|---|
| Condition | Used |
