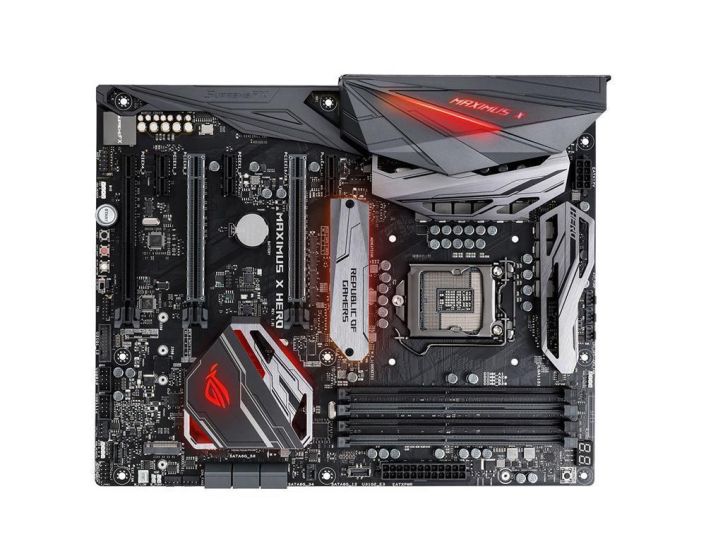

90MB0V30-M0EAY0 ASUS ROG MAXIMUS X HERO Socket LGA 1151 Intel Z370 Chipset 8th Generation Core Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$457.53
- Part No. : 90MB0V30-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0V30-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Chipset : Intel Z370
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : 8-pin 12V Power ConnectorAudio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorDisplayPortPS/2 KeyboardPS/2 MouseUSB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 Type-A + USB Type-CTM4 x USB 3.1 Gen 1 (blue)2 x USB 2.01 x Optical S/PDIF out1 x Clear CMOS button(s)1 x USB BIOS Flashback® Button(s)5 x Gold-plated audio jacksInternal I/O Ports1 x Aura Addressable Strip Header(s)2 x Aura RGB Strip Headers1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x TPM connector(s)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)3 x Chassis Fan connector(s) (3 x 4 -pin)1 x AIO_PUMP connector (1 x 4 -pin)1 x H_AMP fan connector1 x W_PUMP+ connector (1 x 4 -pin)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x MemOK! button(s)1 x Slow Mode switch(es)1 x Reset button(s)1 x LN2 Mode jumper(s)1 x Safe Boot button1 x ReTry button1 x System panel connector3 x 3D Mount screw port(s)1 x EXT_Fan header1 x W_IN header1 x W_OUT header1 x W_FLOW header1 x Thermal sensor connector1 x Start button1 x USB 3.1 Gen 2 front panel connector
| brand | Asus |
|---|---|
| Condition | Used |
