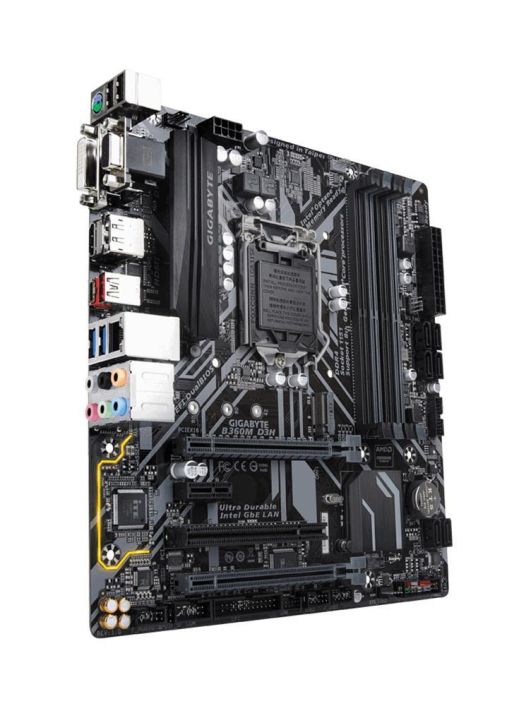

B360M D3H GSM Gigabyte Socket LGA 1151 Intel B360 Express Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
$199.34
- Part No. : B360M D3H GSM
- Product Type: Motherboard
- Brand : Gigabyte Tech
Specifications:
- Manufacturer : Gigabyte Tech
- Manufacturer Part # : B360M D3H GSM
- Product Type : System Board
- Form Factor : Micro ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Chipset : Intel B360
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E x16PCI-E x4
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC892
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorAudio-InAudio-OutD-SubDVI-DParallelPS/2 KeyboardPS/2 MouseRJ-45SerialUSB 1.1USB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Connectors1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x M.2 Socket 3 connector6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x parallel port header1 x Clear CMOS jumperBack Panel Connectors1 x PS/2 keyboard/mouse port1 x D-Sub port1 x DVI-D port1 x DisplayPort1 x HDMI port1 x USB Type-Câ„¢ port, with USB 3.1 Gen 1 support1 x USB 3.1 Gen 2 Type-A port (red)2 x USB 3.1 Gen 1 ports2 x USB 2.0/1.1 ports1 x RJ-45 port6 x audio jacks
| brand | Gigabyte Tech |
|---|---|
| Condition | Used |
