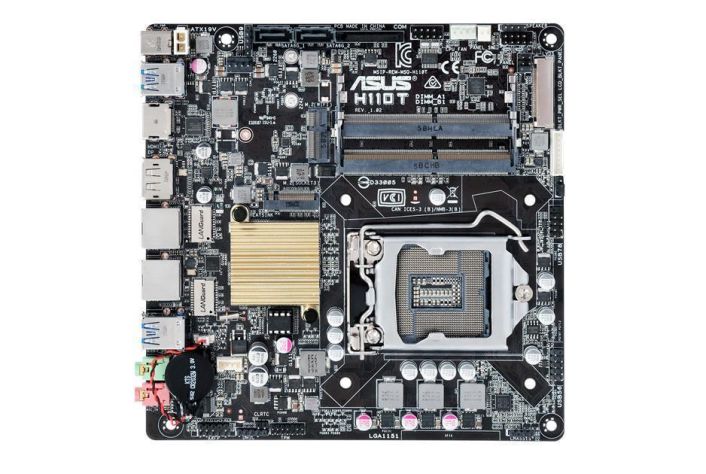

H110TCSMCSI ASUS Socket LGA 1151 Intel H110 Chispet 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 2x SATA 6.0Gb/s Mini-ITX Motherboard (Refurbished)
$361.93
- Part No. : H110TCSMCSI
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : H110TCSMCSI
- Product Type : System Board
- Form Factor : Mini-ITX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel H110
- Number of Memory Slot(s) : 2
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)
- Maximum Installed Memory : 32GB
- Storage Controller : SATA 6.0 Gbps
- Storage Controller Details : 1 x M.2 Socket 3, with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)2 x SATA 6Gb/s port(s)
- Shared Video Memory : 1024 MB
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorAudio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorHDMIUSB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Connectors3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)1 x COM port(s) connector(s)2 x SATA 6Gb/s connector(s)1 x SATA power connector(s)1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x Front panel audio connector(s) (AAFP)1 x Chassis Intrusion connector(s)1 x Clear CMOS jumper(s)1 x 2-pin internal DC power connector1 x Stereo speaker connector1 x DMIC header1 x Backlight inverter voltage selection header1 x FPD brightness header1 x Panel voltage selection header1 x Panel off header1 x LVDS connector(s)1 x 14-1 pin TPM connector1 x System panel connector1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB modeBack Panel Connectors1 x DisplayPort1 x HDMI2 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue)2 x Audio jack(s)1 x DC power connector(s)
| brand | Asus |
|---|---|
| Condition | Used |
