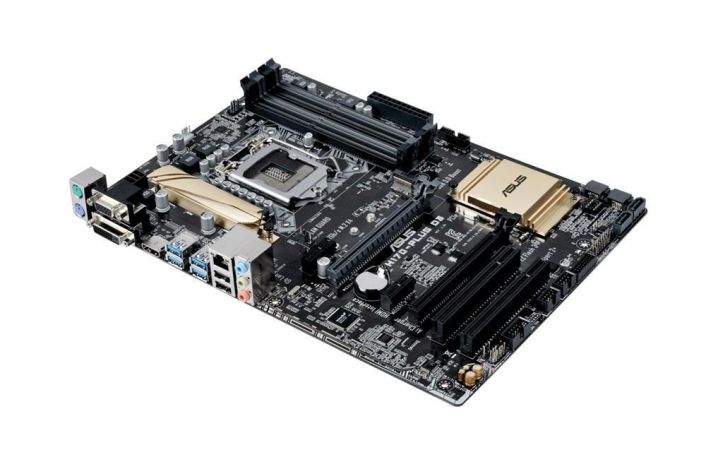

H170-PLUSD3 ASUS H170-PLUS D3 Socket LGA 1151 Intel H170 Chipset 6th Generation Core i7/ Core i5/ Core i3/ Pentium/ Celeron Processors Support ATX Motherboard (Refurbished)
$361.93
- Part No. : H170-PLUSD3
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : H170-PLUSD3
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel H170
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)
- Maximum Installed Memory : 64GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 1 x PCIe 3.0/2.0 x16 (x16 mode, gray)1 x PCIe 3.0/2.0 x16 (max at x4 mode, black)2 x PCIe 3.0/2.0 x12 x PCI
- Storage Controller : SATA 6.0 Gbps
- Storage Controller Details : Intel H170 chipset1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)4 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 5, 10Supports Intel Smart Response Technology*1
- Shared Video Memory : 1024 MB
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : 8-pin 12V Power ConnectorAudio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorD-SubDVI-DHDMIPS/2PS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Ports2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices1 x COM port(s) connector(s)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s)1 x Clear CMOS jumper(s)Back I/O Ports1 x PS/2 keyboard (purple)1 x PS/2 mouse (green)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue) Type-A2 x USB 2.03 x Audio jack(s)
- Features : ASUS 5X Protection IIASUS LANGuard - 2.5X higher surge toleranceASUS Overvoltage Protection - World-class circuit-protecting power designASUS DIGI+ VRM - 7 Phase digital power designASUS DRAM Overcurrent Protection - Prevents damage from short circuitsASUS Exclusive FeaturesGPU Boost *3AI Suite 3Ai ChargerAnti-SurgeLow EMI SolutionASUS Quiet Thermal SolutionStylish Fanless Design Heat-sink solution & MOS HeatsinkASUS Fan Xpert 2+ASUS EZ DIYASUS CrashFree BIOS 3ASUS EZ Flash 3ASUS UEFI BIOS EZ ModeASUS Q-DesignASUS Q-Slot
| brand | Asus |
|---|---|
| Condition | Used |
