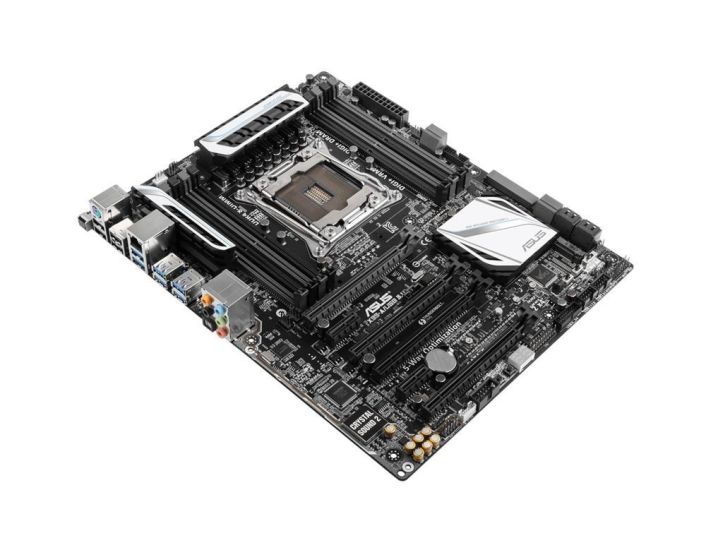

MB-X99-AU3 ASUS X99-A/USB 3.1 Socket LGA 2011-v3 Intel X99 Chipset Core i7 Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$361.93
- Part No. : MB-X99-AU3
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : MB-X99-AU3
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 2011-3
- Supported CPU(s) : Intel Core i7 Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel X99
- Number of Memory Slot(s) : 8
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x1PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (teal blue)4 x USB 3.1 Gen 1 (blue)4 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)1 x USB BIOS Flashback® Button(s)Internal I/O Ports1 x AAFP connector2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x SATA Express connector: gray,1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)1 x TPM connector(s)1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)4 x Chassis Fan connector(s) (4 x 4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x System panel(s) (Q-Connector)1 x Chassis Intrusion connector(s)1 x DRCT header(s)1 x MemOK! button(s)1 x Thermal sensor connector(s)1 x TPU switch(es)1 x EPU switch(es)1 x CPU/DRAM overvoltage jumper(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS jumper(s)1 x 5-pin EXT_FAN(Extension Fan) connector
| brand | Asus |
|---|---|
| Condition | Used |
