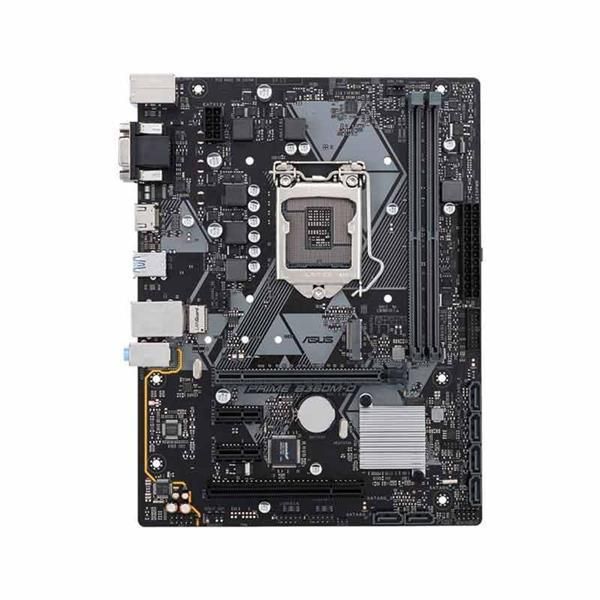

PRIME B360M-D ASUS Socket LGA 1151 Intel B360 Chipset 8th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 2x DIMM 6x SATA 6.0Gb/s Micro-ATX Motherboard (Refurbished)
$361.93
- Part No. : PRIME B360M-D
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : PRIME B360M-D
- Product Type : System Board
- Form Factor : Micro ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Chipset : Intel B360
- Number of Memory Slot(s) : 2
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)
- Maximum Installed Memory : 32 GB
- Expansion Slots : PCIPCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x1PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC887
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCOMHDMIPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Back I/O1 x PS/2 keyboard/mouse combo port(s)1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps2 x USB 2.01 x COM port(s)1 x 8-channel Audio I/OInternal I/O1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x Speaker connector
| brand | Asus |
|---|---|
| Condition | Used |
