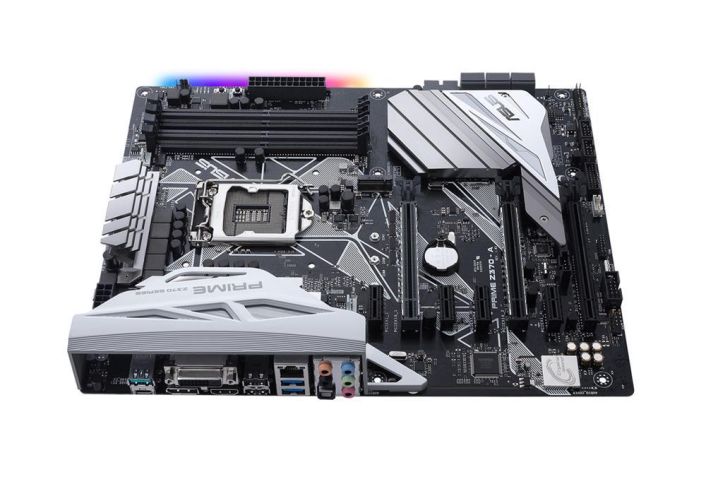

PRIME Z370-A II ASUS Socket LGA 1151 Intel Z370 Chipset 9th/8th Generation Core i7 / i5 / i3 / Pentium Gold / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$237.04
- Part No. : PRIME Z370-A II
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : PRIME Z370-A II
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z370
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x1PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC-S1220A
- Network : Gigabit Ethernet
- Connectors/Ports : 8-pin 12V Power ConnectorAudio-InAudio-OutHDMIRJ-45USB 2.0
- Connectors/Ports Details : Back I/O Ports1 x DVI-D1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 Type-A1 x USB 3.1 Gen 2 USB Type-CTM2 x USB 3.1 Gen 12 x USB 2.01 x Optical S/PDIF out5 x Audio jack(s)Internal I/O Ports1 x Aura RGB Strip Header2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)2 x Chassis Fan connector(s) (2 x 4 -pin)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector) (Chassis intrusion header is inbuilt)1 x 5-pin EXT_FAN(Extension Fan) connector1 x MemOK! button(s)1 x CPU OV1 x Power-on button(s)1 x Clear CMOS jumper(s)1 x 14-1 pin TPM connector1 x COM port header1 x T_Sensor Connector1 x AIO PUMP Header1 x M.2 Fan Header
| brand | Asus |
|---|---|
| Condition | Used |
