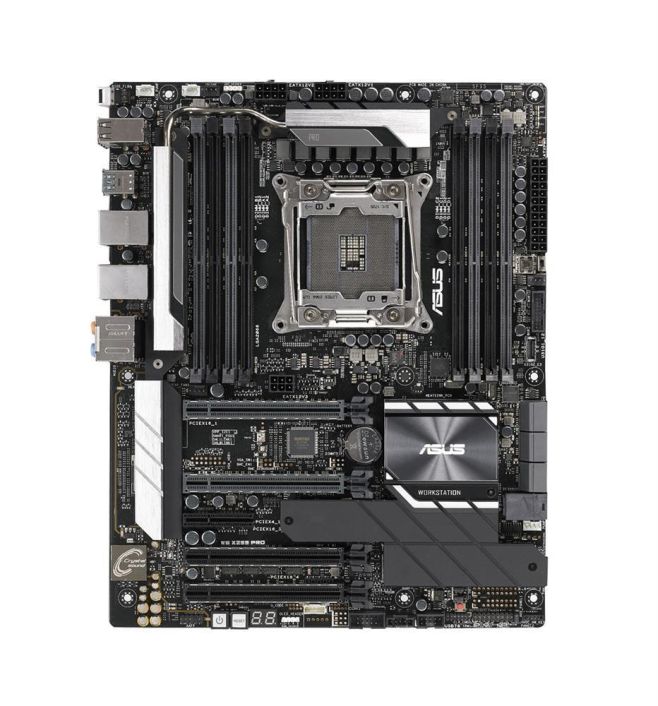

WSX299PRO ASUS Socket LGA 2066 Intel X299 Chipset Core X-Series Processors Support DDR4 8x DIMM 6x SATA 6.0Gb/s ATX Server Motherboard (Refurbished) WS X299 PRO
$713.40
- Part No. : WSX299PRO
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : WSX299PRO
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 2066
- Supported CPU(s) : Intel Core X-Series Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel X299
- Number of Memory Slot(s) : 8
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-21333 (DDR4-2666)
- Maximum Installed Memory : 128 GB
- Expansion Slots : PCI-E 3.0 x16
- Expansion Slots Details : 44-Lane CPU-2 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x8 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x4 (x4 mode)28-Lane CPU-1 x PCIe 3.0 x16 (x16 mode)1 x PCIe 3.0 x16 (x8 mode)1 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x4 (x4 mode)16-Lane CPU-1 x PCIe 3.0 x16 (x8 mode)2 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x4 (x4 mode)
- Storage Controller : SATA 6.0 Gbps
- Storage Controller Details : Intel® X299 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*11 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*21 x U.2 connector6 x SATA 6Gb/s port(s)Support Raid 0, 1, 5, 10Intel® Rapid Storage Technology 15 supportSupport Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAIDSupports Intel® Smart Response TechnologyIntel® Optane™ Memory Ready
- Audio Controller : Realtek ALC-S1220A
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutRJ-45S/PDIFUSB 2.0USB 3.1
- Connectors/Ports Details : 2 x LAN (RJ45) port(s)2 x USB 3.1 Gen 2 (teal blue)Type-A + USB Type-CTM4 x USB 3.1 Gen 14 x USB 2.01 x Optical S/PDIF out1 x USB BIOS Flashback Button(s)1 x 8-channel Audio I/O
- Features : OC Design ASUS PRO Clock II TechnologyASUS 5X ProtectionASUS Enhanced DRAM Overcurrent Protection Short circuit damage preventionASUS ESD Guards Enhanced ESD protectionASUS Stainless Steel Back I/O 3x more durable corrosion-resistant coatingASUS EPUEPUASUS Digital Power DesignIndustry leading Digital 8 Phase CPU Power DesignIndustry leading Digital 2 Phase DRAM Power DesignAURAAura RGB Strip HeadersAura Addressable Strip Header(s)ASUS Exclusive FeaturesAi Charger+Turbo LANCrystal Sound 3ASUS Quiet Thermal SolutionStylish Fanless Design with M.2 Heat-sink solutionASUS Q-DesignASUS Q-ShieldASUS Q-CodeASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)ASUS Q-SlotASUS Q-DIMMASUS Q-ConnectorM.2 and U.2 Onboard (The Latest Transfer Technology with up to 32Gb/s Data-transfer Speeds for M.2 and U.2)Asus Control Center (ACC) IT management software supported
| brand | Asus |
|---|---|
| Condition | Used |
