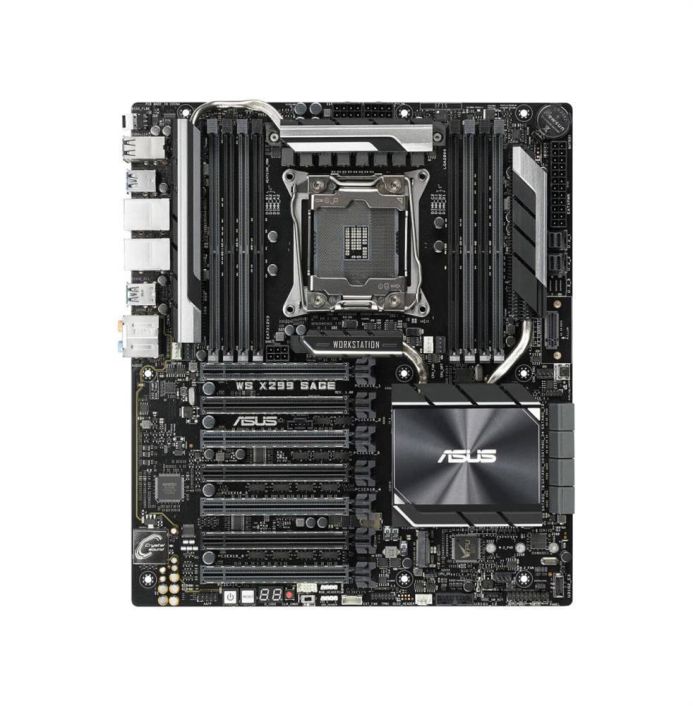

WSX299SAGE ASUS Socket LGA 2066 Intel X299 Chipset Core X Series Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s CEB Server Motherboard (Refurbished)
$606.69
- Part No. : WSX299SAGE
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : WSX299SAGE
- Product Type : Server Motherboard
- Form Factor : SSI CEB
- CPU Socket Type : LGA 2066
- Supported CPU(s) : Intel Core X-Series Processor
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-23466 (DDR4-2933)
- Maximum Installed Memory : 256 GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : 8-pin 12V Power ConnectorAudio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorUSB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports2 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 (teal blue)Type-A1 x USB 3.1 Gen 2 (black)USB Type-CTM6 x USB 3.1 Gen 1 (blue)4 x USB 2.0 (one port can be switched to USB BIOS Flashback®)1 x Optical S/PDIF out1 x USB BIOS Flashback® Button(s)1 x 8-channel Audio I/OInternal I/O Ports1 x Aura Addressable Strip Header(s)2 x U.2 port1 x AAFP connector1 x Aura RGB Strip Header1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)1 x TPM header1 x COM port(s) connector(s)8 x SATA 6Gb/s connector(s)1 x VROC_HW_Key1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 6-pin ATX Power connector2 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x 5-pin EXT_FAN(Extension Fan) connector1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Water Pump header (4-pin)1 x System panel connector1 x Thermal sensor connector1 x USB 3.1 Gen 2 front panel connector1 x CPU_OV jumper1 x MemOK! Button1 x M.2 Fan Header
| brand | Asus |
|---|---|
| Condition | Used |
