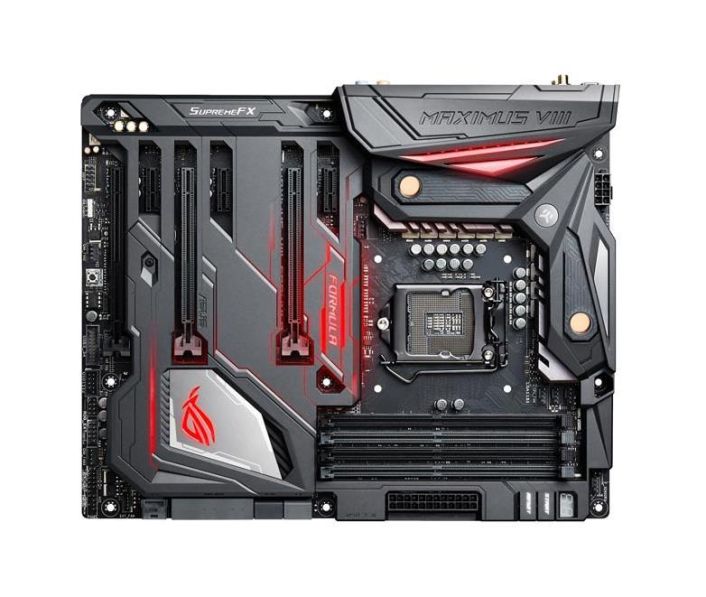

Z170MX06 ASUS ROG MAXIMUS VIII FORMULA Socket LGA 1151 Intel Z170 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$361.93
- Part No. : Z170MX06
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : Z170MX06
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z170
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x1PCI-E 3.0 x16
- Expansion Slots Details : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, gray)1 x PCIe 3.0/2.0 x16 (x4 mode, black)3 x PCIe 2.0 x1 (black)
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)1 x USB 3.1 Gen 2 (red)Type-A1 x USB 3.1 Gen 2 (black)USB Type-CTM6 x USB 3.1 Gen 1 (blue)1 x Optical S/PDIF out5 x Audio jack(s)1 x Clear CMOS button(s)2 x Wi-Fi antenna port(s)1 x USB BIOS Flashback® Button(s)Internal I/O Ports1 x U.2 port1 x Aura RGB Strip Headers2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA Express connector: , Compatible with 4 x SATA 6.0 Gb/s ports1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Supports both SATA & PCIE SSD)4 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (4 -pin)1 x CPU OPT Fan connector(s) (4 -pin)4 x Chassis Fan connector(s) (4 -pin)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector)1 x MemOK! button(s)3 x Thermal sensor connector(s)1 x Power-on button(s)1 x Reset button(s)1 x Water Pump header (4-pin)1 x LN2 Mode jumper(s)1 x ROG extension (ROG_EXT) header(s)
| brand | Asus |
|---|---|
| Condition | Used |
