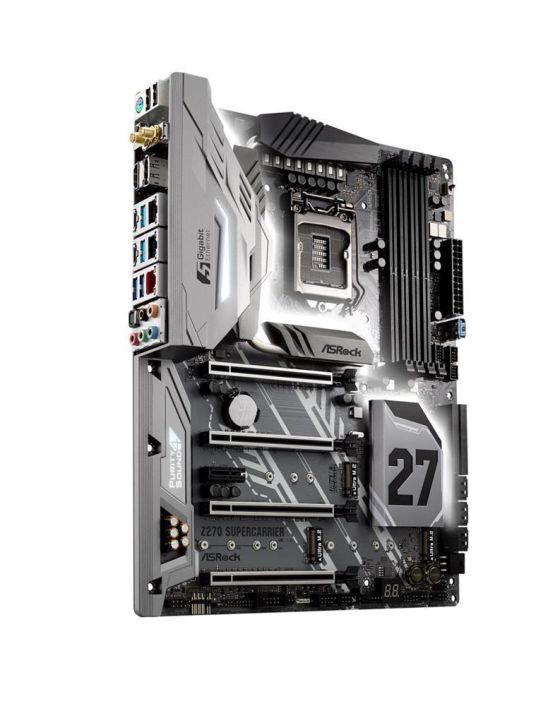

Z270 SuperCarrier ASRock Socket LGA 1151 Intel Z270 Chipset 7th/6th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR4 4x DIMM 10x SATA3 6.0Gb/s ATX Motherboard (Refurbished)
$360.06
- Part No. : Z270 SuperCarrier
- Product Type: Motherboard
- Brand : ASRock
Specifications:
- Manufacturer : ASRock
- Manufacturer Part # : Z270 SuperCarrier
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1151
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z270
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-23466 (DDR4-2933)PC4-25600 (DDR4-3200)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 3.0 x1PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1220
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorChassis Fan ConnectorCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Connector1 x COM Port Header1 x TPM Header1 x Power LED and Speaker Header1 x AURA RGB LED Header1 x CPU Fan Connector (4-pin)1 x CPU Optional/Water Pump Fan Connector (4-pin)2 x Chassis Fan Connectors (4-pin)1 x Chassis Optional/Water Pump Fan Connector (4-pin)1 x 24 pin ATX Power Connector (Hi-Density Power Connector)1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x 6 pin 12V Power Connector (Hi-Density Power Connector)1 x Front Panel Audio Connector (15μ Gold Audio Connector)1 x Right Angle Front Panel Audio Connector2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Intel® Z270) (Supports ESD Protection (ASRock Full Spike Protection)2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection)1 x Vertical Type A USB 3.1 Gen1 (Intel® Z270)1 x Dr. Debug with LED1 x Power Switch with LED1 x Reset Switch with LED1 x XMP SwitchRear Panel I/O2 x Antenna Ports1 x PS/2 Mouse/Keyboard Port1 x HDMI Port1 x DisplayPort 1.22 x Intel® Thunderbolt™ 3 (Compatible with USB 3.1 Gen2 and USB-C Display)1 x Optical SPDIF Out Port2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))4 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))3 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS SwitchHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
| brand | ASRock |
|---|---|
| Condition | Used |
