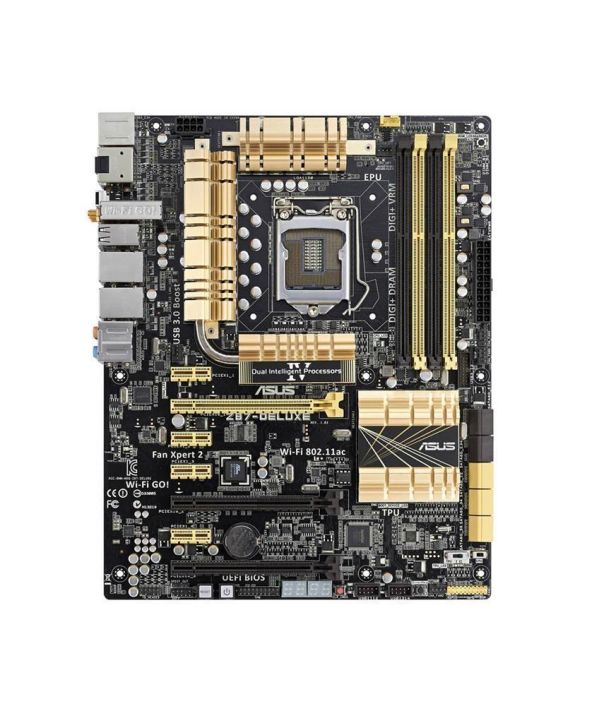

Z87-DELUXE-DDO ASUS Z87-DELUXE Socket LGA 1150 Intel Z87 Chipset 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$361.93
- Part No. : Z87-DELUXE-DDO
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : Z87-DELUXE-DDO
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z87
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-19200 (DDR3-2400)PC3-21300 (DDR3-2666)
- Maximum Installed Memory : 32 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16
- Expansion Slots Details : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 2.0 x16 (x4 mode)4 x PCIe 2.0 x1
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 3.1
- Connectors/Ports Details : Back I/O Ports1 x DisplayPort1 x HDMI2 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)1 x Optical S/PDIF out1 x Bluetooth V4.0 connector(s) for ASUS Wi-Fi GO! card1 x USB BIOS Flashback® Button(s)1 x Mini DisplayPort(s)Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x TPM header10 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)4 x Chassis Fan connector(s) (4 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel connector(s)1 x DirectKey Button(s)1 x DRCT header(s)1 x MemOK! button(s)1 x TPU switch(es)1 x EPU switch(es)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)
| brand | Asus |
|---|---|
| Condition | Used |
