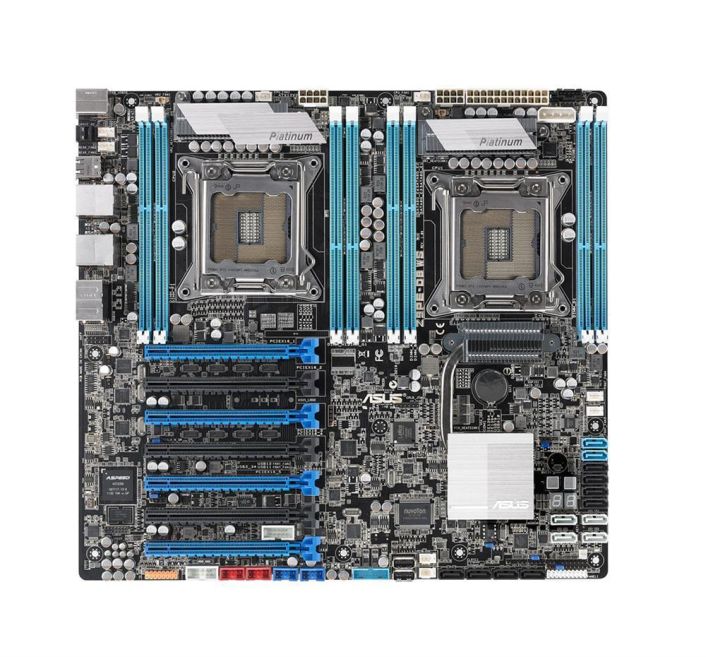

Z9PE-D8-WS ASUS Intel C602 Chipset Xeon E5-2600 Processor Support Socket LGA2011 EEB Workstation Motherboard (Refurbished)
$663.33
- Part No. : Z9PE-D8-WS
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : Z9PE-D8-WS
- Product Type : Server Motherboard
- Form Factor : SSI EEB
- CPU Socket Type : LGA 2011
- Supported CPU(s) : Intel Xeon Processor
- Supported CPU Technologies : 64-bitHyper-Threading TechnologyIntel Turbo Boost TechnologyIntel Virtualization Technology
- Chipset : Intel C602
- Number of Memory Slot(s) : 8
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-16000 (DDR3-2000)PC3-8500 (DDR3-1066)
- Maximum Installed Memory : 256GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 4 x PCIe 3.0/2.0 x16 (dual x16 or quad x8) *22 x PCIe 3.0/2.0 x16 *21 x PCIe 3.0/2.0 x16 (x8 mode) *2
- Storage Controller : SATA 3.0 GbpsSATA 6.0 Gbps
- Storage Controller Details : 2 x SATA 6Gb/s port(s), blue8 x SATA 3Gb/s port(s), blackMarvell PCIe 9230 controller4 x SATA 6Gb/s port(s), graySupport Raid 0, 1, 10
- Audio Controller : Realtek ALC898
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power ConnectorAudio-InAudio-OutCPU Fan ConnectorPS/2PS/2 KeyboardPS/2 MouseS/PDIFUSB 1.1USB 2.0USB 3.1
- Connectors/Ports Details : Internal I/O Connectors1 x USB 3.1 Gen 1 connector(s) support(s) additional 0 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x USB 2.0/1.1 vertical port(s)2 x COM port(s) connector(s)2 x IEEE 1394a connector(s)2 x CPU Fan connector(s) (2 x 4 -pin)6 x Chassis Fan connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)2 x 8-pin ATX 12V Power connector(s)1 x 4-pin EZ_PLUG Power connector(s)1 x ASMB6-iKVM connector(s)1 x VGA connector(s)1 x Front panel audio connector(s) (AAFP)1 x AUX panel header(s)1 x SMBus header(s)1 x System panel(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS jumper(s)Back I/O Connectors1 x PS/2 keyboard/mouse combo port(s)2 x LAN (RJ45) port(s)2 x USB 3.1 Gen 16 x USB 2.01 x Optical S/PDIF out6 x Audio jack(s)
| brand | Asus |
|---|---|
| Condition | Used |
