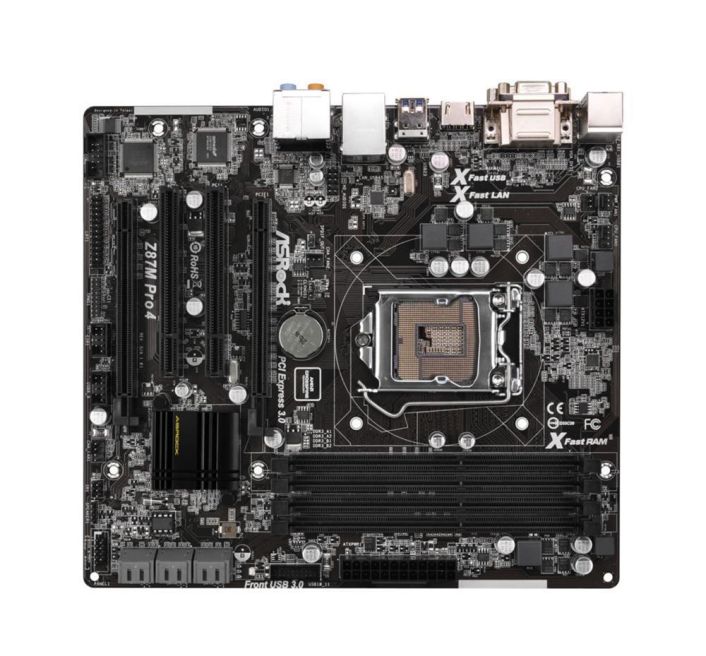

90-MXGPD0-A0UAYZ ASRock Z87M Pro4 Socket LGA 1150 Intel Z87 Chipset 4th & 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3/DDR3L 4x DIMM 6x SATA3 6.0Gb/s Micro-ATX Motherboard (Refurbished)
$131.40
- Part No. : 90-MXGPD0-A0UAYZ
- Product Type: Motherboard
- Brand : ASRock
Specifications:
- Manufacturer : ASRock
- Manufacturer Part # : 90-MXGPD0-A0UAYZ
- Product Type : System Board
- Form Factor : Micro ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium ProcessorIntel Xeon Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z87
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-19200 (DDR3-2400)PC3-8500 (DDR3-1066)
- Maximum Installed Memory : 32 GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC892
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorChassis Fan ConnectorCOMCPU Fan ConnectorD-SubDVI-DHDMIPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 2.0USB 3.1
- Connectors/Ports Details : Connector1 x IR header1 x Print Port header1 x COM Port header1 x Chassis Intrusion header1 x TPM header2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)1 x Power Fan connector (3-pin)1 x 24 pin ATX power connector1 x 8 pin 12V power connector1 x Front panel audio connector1 x SPDIF Out connector2 x USB 2.0 headers (support 4 USB 2.0 ports)1 x USB 3.1 Gen1 header (supports 2 USB 3.1 Gen1 ports)Rear Panel I/O1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x DVI-D Port1 x HDMI Port1 x Optical SPDIF Out Port2 x USB 2.0 Ports4 x USB 3.1 Gen1 Ports1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
| brand | ASRock |
|---|---|
| Condition | Used |
