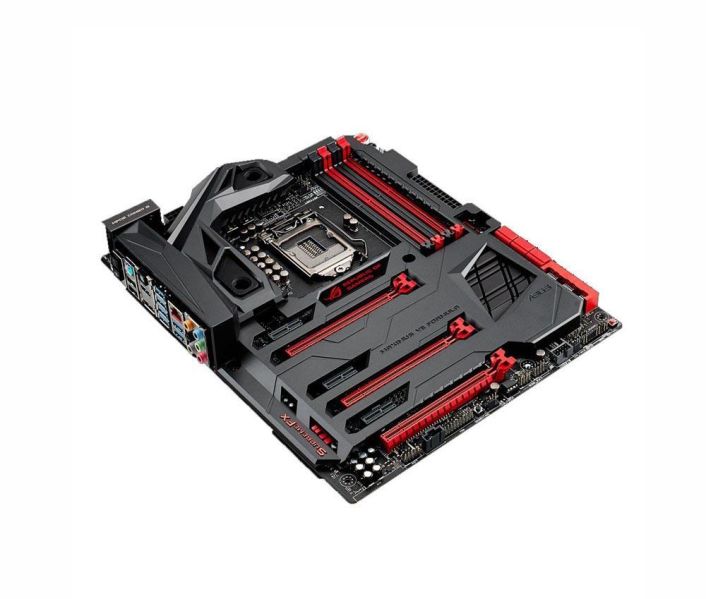

90MB0J31-M0EAY0 ASUS MAXIMUS VII FORMULA Socket LGA 1150 Intel Z97 Chipset 5th/New 4th/4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processors Support DDR3 4x DIMM 6x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$359.05
- Part No. : 90MB0J31-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0J31-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z97
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-16000 (DDR3-2000)
- Maximum Installed Memory : 32 GB
- Expansion Slots : Mini PCIPCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 2.0 x16 (x4 mode) *13 x PCIe 2.0 x11 x mini-PCIe 2.0 x1 *2
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCPU Fan ConnectorDisplayPortHDMIPS/2 KeyboardPS/2 MouseRJ-45USB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x DisplayPort1 x HDMI1 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)2 x USB 2.0 (one port can be switched to ROG Connect)1 x Optical S/PDIF out6 x Audio jack(s)1 x Clear CMOS button(s)1 x ROG Connect On/ Off switch(es)Internal I/O Ports1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA Express connector: red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 x TPM header6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)6 x Chassis Fan connector(s) (6 x 4 -pin)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector)1 x MemOK! button(s)10 x ProbeIt Measurement Points1 x Thermal sensor connector(s)1 x Power-on button(s)1 x Reset button(s)1 x mPCIe Combo III connector(s)1 x ROG extension (ROG_EXT) header(s)1 x KeyBot Button1 x Sonic SoundStage Button
| brand | Asus |
|---|---|
| Condition | Used |
