BEST SELLING PRODUCTS
btd-040933
In stock

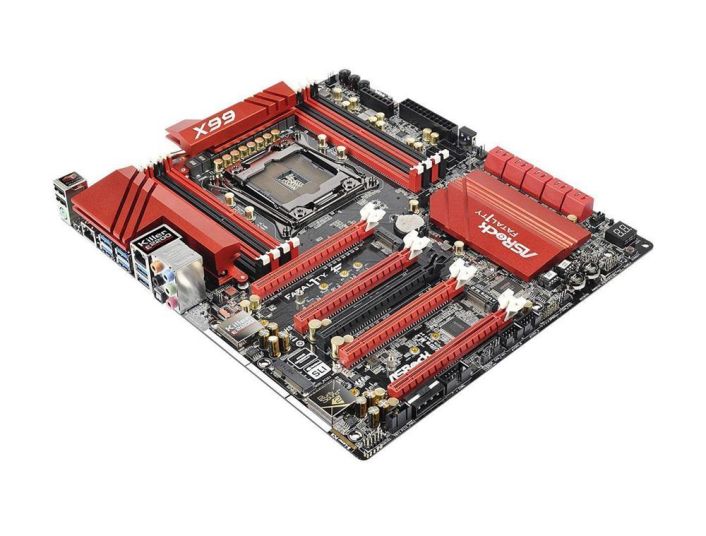

90-MXGW80-A0UAYZ ASRock Fatal1ty X99 Professional Socket LGA 2011-3 Intel X99 Chipset Core i7/ Xeon 22-Core Processors Family Support DDR4 8x DIMM 10x SATA3 6.0Gb/s Extended ATX Motherboard (Refurbished)
$363.08
- Part No. : 90-MXGW80-A0UAYZ
- Product Type: Motherboard
- Brand : ASRock
Specifications:
- Manufacturer : ASRock
- Manufacturer Part # : 90-MXGW80-A0UAYZ
- Product Type : System Board
- Form Factor : E-ATX
- CPU Socket Type : LGA 2011-3
- Supported CPU(s) : Intel Core i7 ProcessorIntel Xeon Processor
- Chipset : Intel X99
- Number of Memory Slot(s) : 8
- Number of Memory Channel(s) : 4
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-23466 (DDR4-2933)PC4-25600 (DDR4-3200)
- Expansion Slots : PCI-E 3.0 x16PCI-E x8
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : 24-pin ATX Power Connector8-pin 12V Power ConnectorChassis Fan ConnectorCOMCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 2.0USB 3.1
- Connectors/Ports Details : Connector1 x COM Port Header1 x TPM Header1 x Power LED Header2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed Control)3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) (Smart Fan Speed Control)1 x Power Fan Connector (3-pin)1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector (Hi-Density Power Connector)1 x 4 pin 12V Power Connector (Hi-Density Power Connector)1 x HDD Saver Connector1 x PCIe Power Connector1 x Front Panel Audio Connector1 x Thunderboltâ„¢ AIC Connector*2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))1 x Vertical Type A USB 3.1 Gen12 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))1 x Dr. Debug with LED1 x Power Switch with LED1 x Reset Switch with LEDV-Probeâ„¢: 7-set of onboard voltage measurement points laidRapid OC Buttons: +/- buttons to adjust OC frequency1 x Menu Button1 x PCIe ON/OFF Switch1 x Slow Mode Switch1 x LN2 Mode Switch1 x BIOS Selection Switch1 x Direct Key ButtonRear Panel I/O1 x PS/2 Mouse/Keyboard Port1 x Optical SPDIF Out Port1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection))1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))4 x USB 3.1 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)1 x Clear CMOS SwitchHD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
| brand | ASRock |
|---|---|
| Condition | Used |
