BEST SELLING PRODUCTS
btd-046150
In stock

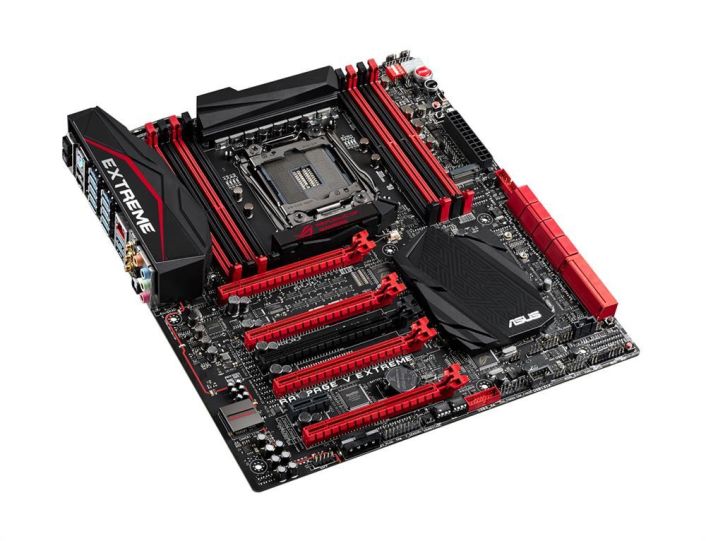

MBRAP5EXU ASUS RAMPAGE V EXTREME/U3.1 Socket LGA 2011-v3 Intel X99 Chipset Core i7 Processors Support DDR4 8x DIMM 8x SATA 6.0Gb/s Extended ATX Motherboard (Refurbished)
$523.91
- Part No. : MBRAP5EXU
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : MBRAP5EXU
- Product Type : System Board
- Form Factor : E-ATX
- CPU Socket Type : LGA 2011-3
- Supported CPU(s) : Intel Core i7 Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel X99
- Number of Memory Slot(s) : 8
- Number of Memory Channel(s) : 4
- Supported Memory Standard(s) : PC4-17000 (DDR4-2133)PC4-19200 (DDR4-2400)PC4-21333 (DDR4-2666)
- Maximum Installed Memory : 64 GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- Network : Gigabit Ethernet
- Connectors/Ports : 8-pin 12V Power ConnectorChassis Fan ConnectorCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45TPM HeaderUSB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)1 x LAN (RJ45) port(s)10 x USB 3.1 Gen 1 (blue)2 x USB 2.0 (one port can be switched to ROG Connect)1 x Optical S/PDIF out5 x Audio jack(s)1 x Clear CMOS button(s)1 x ROG Connect On/ Off switch(es)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0Internal I/O Ports2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA Express connector: red, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 x M.2 Socket 3 for M Key, type 2260/2280/22110 storage devices support ( Support PCIE SSD only)1 x TPM header8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)6 x Chassis Fan connector(s) (6 x 4 -pin)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector)1 x MemOK! button(s)1 x Slow Mode switch(es)9 x ProbeIt Measurement Points3 x Thermal sensor connector(s)1 x EZ Plug connector(s) (4-pin Molex power connector)1 x Power-on button(s)1 x Reset button(s)1 x BIOS Switch button(s)1 x LN2 Mode jumper(s)1 x ROG extension (ROG_EXT) header(s)1 x KeyBot Button1 x Sonic SoundStage Button1 x Safe Boot button1 x ReTry button
| brand | Asus |
|---|---|
| Condition | Used |
