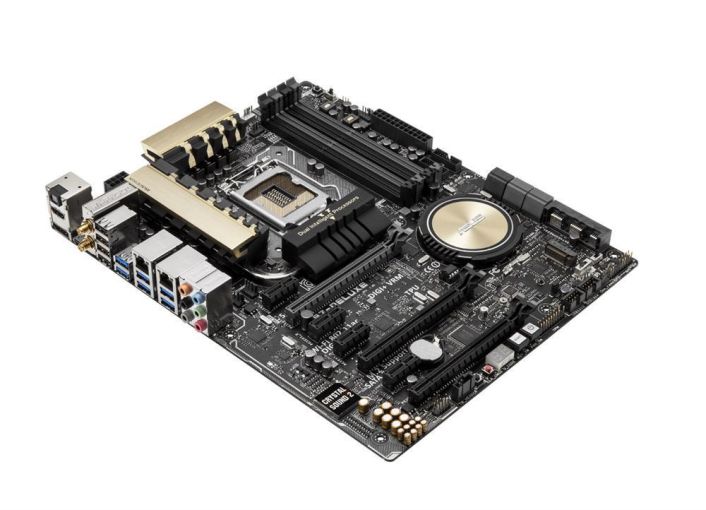

90MB0HZ0-M0EAY0 ASUS Z97-DELUXE Socket LGA 1150 Intel Z97 Chipset 5th/New 4th/4th Generation Core i7 / i5 / i3 /Pentium / Celeron Processors Support DDR3 2x DIMM 4x SATA 6.0Gb/s ATX Motherboard (Refurbished)
$303.74
- Part No. : 90MB0HZ0-M0EAY0
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : 90MB0HZ0-M0EAY0
- Product Type : System Board
- Form Factor : ATX
- CPU Socket Type : LGA 1150
- Supported CPU(s) : Intel Celeron ProcessorIntel Core i3 ProcessorIntel Core i5 ProcessorIntel Core i7 ProcessorIntel Pentium Processor
- Supported CPU Technologies : Intel Turbo Boost Technology
- Chipset : Intel Z97
- Number of Memory Slot(s) : 4
- Number of Memory Channel(s) : 2
- Supported Memory Standard(s) : PC3-10600 (DDR3-1333)PC3-12800 (DDR3-1600)PC3-14900 (DDR3-1866)PC3-16000 (DDR3-2000)PC3-19200 (DDR3-2400)
- Maximum Installed Memory : 32 GB
- Expansion Slots : PCI-E 2.0 x1PCI-E 2.0 x16PCI-E 3.0 x16
- Expansion Slots Details : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)1 x PCIe 2.0 x16 (max at x4 mode) *14 x PCIe 2.0 x1
- Storage Controller : SATA 6.0 Gbps
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Audio-InAudio-OutChassis Fan ConnectorCOMCPU Fan ConnectorDisplayPortHDMIUSB 2.0USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x DisplayPort1 x HDMI2 x LAN (RJ45) port(s)6 x USB 3.1 Gen 1 (blue)4 x USB 2.01 x Optical S/PDIF out6 x Audio jack(s)1 x Mini DisplayPort(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0Internal I/O Ports2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA Express connector: black, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)1 x M.2 Socket 3 for M Key, type 2260/2280 devices1 x TPM header6 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)4 x Chassis Fan connector(s) (4 x 4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x Front panel audio connector(s) (AAFP)1 x System panel(s) (Q-Connector)1 x DRCT header(s)1 x MemOK! button(s)1 x TPU switch(es)1 x EPU switch(es)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x USB BIOS Flashback® button(s)
| brand | Asus |
|---|---|
| Condition | Used |
