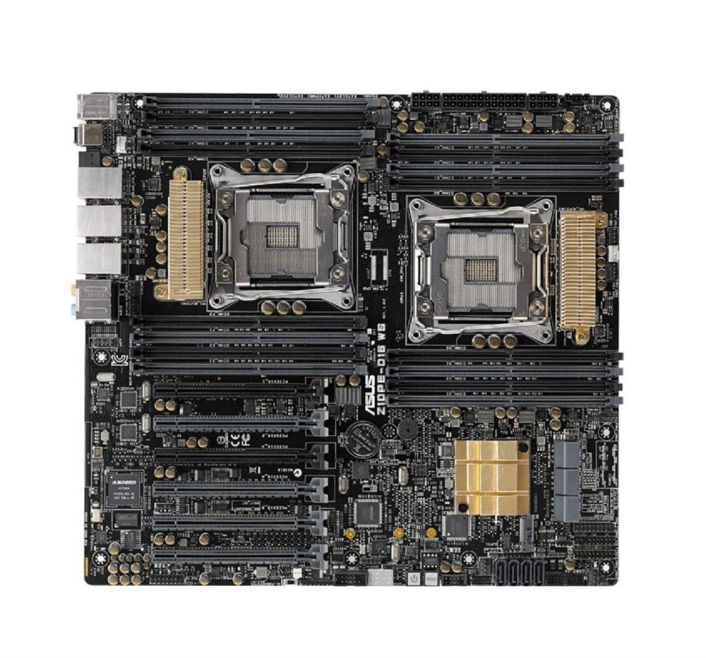

MB10P16WS ASUS Z10pe-d16 Ws Dual Socket 2011-3 Intel C612 Chipset Intel Xeon E5-1600 v4/ E5-2600 v4 Processors Support DDR4 16x DIMM 10x SATA 6.0Gb/s EEB Server Motherboard (Refurbished)
$566.68
- Part No. : MB10P16WS
- Product Type: Motherboard
- Brand : ASUS
Specifications:
- Manufacturer : ASUS
- Manufacturer Part # : MB10P16WS
- Product Type : System Board
- Form Factor : SSI EEB
- CPU Socket Type : LGA 2011-3
- Supported CPU(s) : Intel Xeon Processor
- Chipset : Intel C612
- Number of Memory Slot(s) : 16
- Number of Memory Channel(s) : 4
- Supported Memory Standard(s) : PC3-14900 (DDR3-1866)
- Maximum Installed Memory : 1024 GB
- Expansion Slots : PCI-E 2.0 x16PCI-E 3.0 x16
- Storage Controller : SATA 6.0 Gbps
- On-Board Video Controller : ASPEED AST2400
- Audio Controller : Realtek ALC1150
- Network : Gigabit Ethernet
- Connectors/Ports : Chassis Fan ConnectorCOMCPU Fan ConnectorPS/2 KeyboardPS/2 MouseRJ-45USB 3.1
- Connectors/Ports Details : Back I/O Ports1 x PS/2 keyboard/mouse combo port(s)2 x LAN (RJ45) port(s)4 x USB 3.1 Gen 1 (blue)4 x USB 2.0 *61 x Optical S/PDIF out1 x USB BIOS Flashback® Button(s)1 x Q-Code Logger button1 x 8-channel Audio I/O1 x Management LANInternal I/O Ports1 x AAFP connector1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)1 x M.2 Socket 31 x TPM connector(s)1 x COM port(s) connector(s)10 x SATA 6Gb/s connector(s)2 x CPU Fan connector(s) (2 x 4 -pin)7 x Chassis Fan connector(s) (7 x 4 -pin)1 x S/PDIF out header(s)2 x 8-pin EATX 12 V_1 Power connector(s)1 x 24-pin EATX Power connector(s)1 x RAID key header(s)1 x VGA connector(s)1 x AUX panel header(s)1 x SMBus header(s)2 x System panel(s) (Q-Connector)1 x Chassis Intrusion connector(s)*61 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x Dr.Power switch(es)2 x Serial Port header1 x ASMB8-iKVM connector
| brand | Asus |
|---|---|
| Condition | Used |
